FAIRDALE X TOY MACHINE LOOKFAR

Designer: Fairdale

$749.00 $869.00

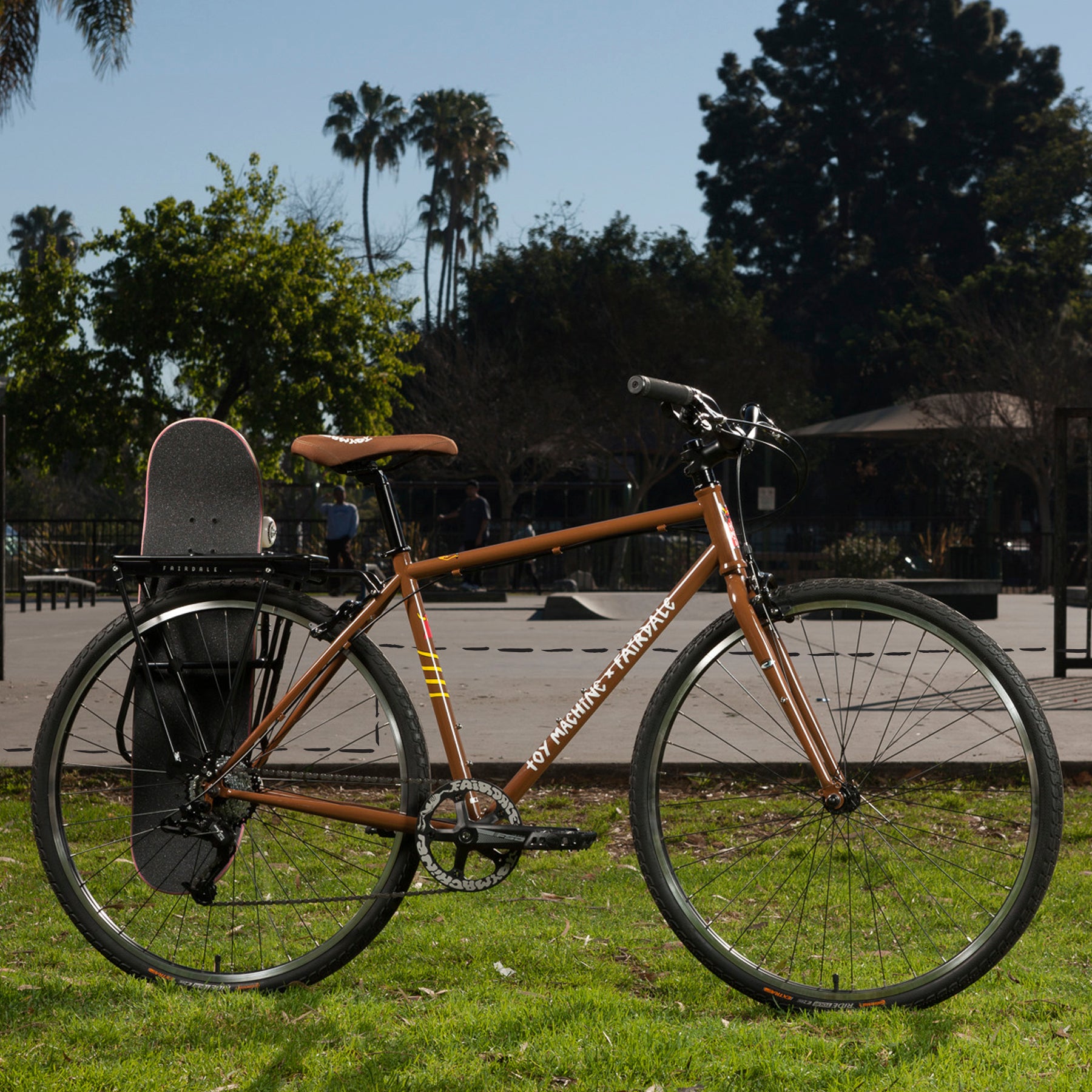

Fairdale Lookfar
Limited Edition Gloss Brown in S‑L

The Lookfar makes cruising and commuting easy. One simple trigger shifter changes the gears up-or-down through all 8-speeds. The bike’s 42mm wide Continental tires feel fast on smooth ground while still confidently handling rough terrain.

The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.

The Lookfar shares the same proven geometry as our ever-popular Weekender model.

Gloss Toothpaste is available in X-Small, Small, and Medium.
Matte Black is available in Small, Medium, and Large.
Matte Lavender (Nora) is available in X-Small, Small, Medium, and Large.
Gloss Brown (Toy Machine) is available in Small, Medium, and Large.

Sizing

X-Small: 4'11" - 5'4" height
Small: 5'2" - 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Specifications

Frame: 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8”
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale Swan

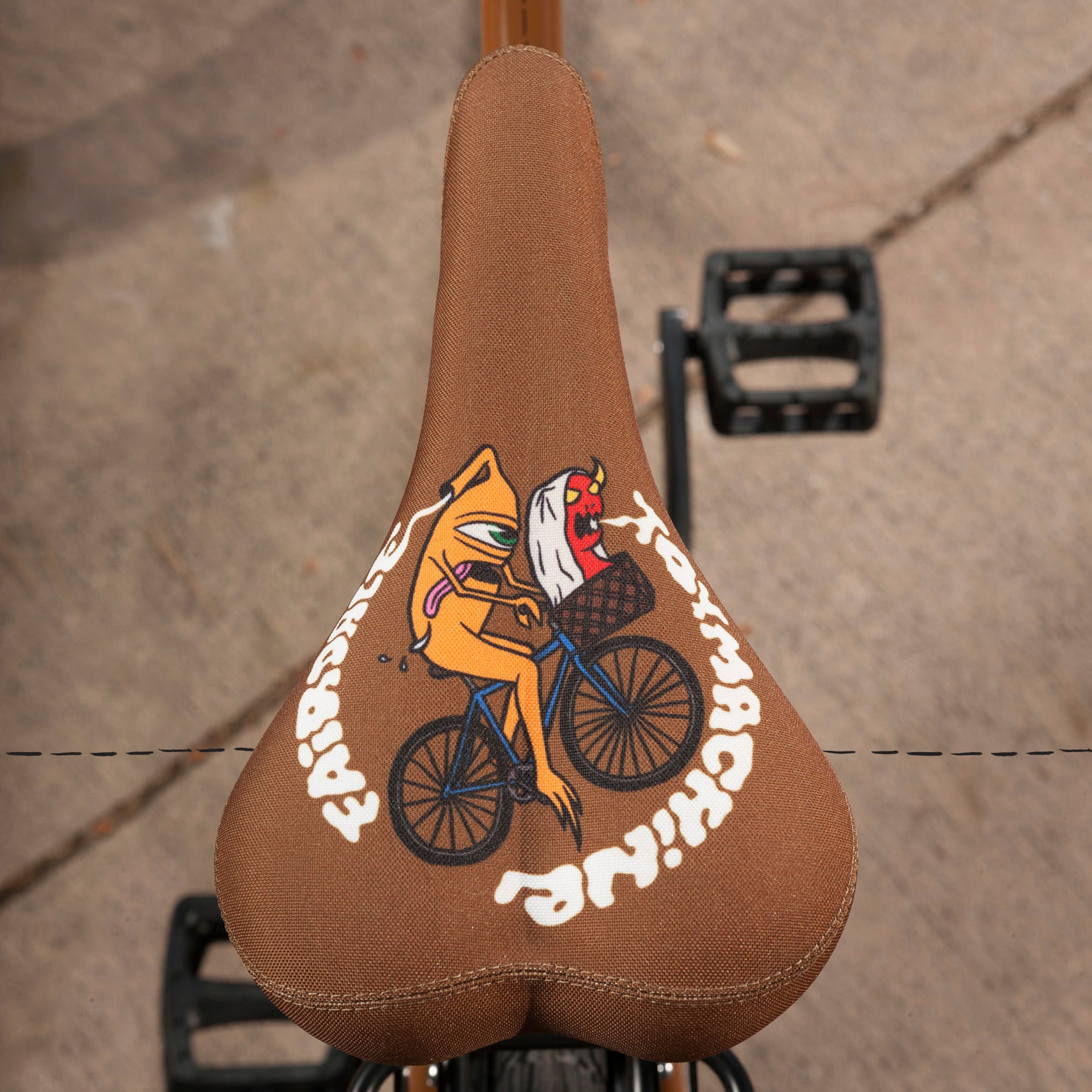

Saddle: Fairdale x Toy Machine
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)

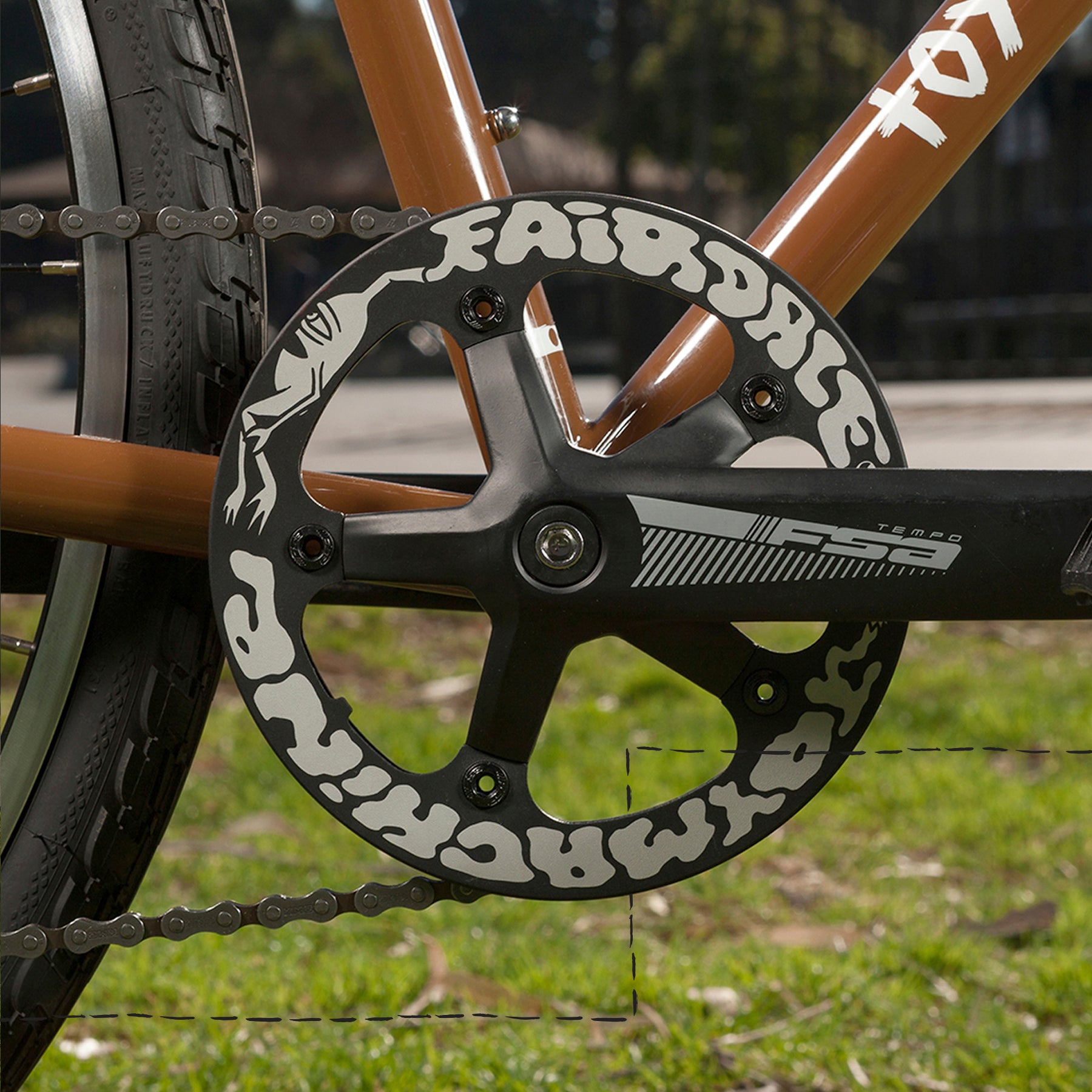

Chainwheel: Toy Machine Laser-Etched Guard, 42t
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
Tires: Goodyear Transit Tour, 700c x 40mm
Chain: KMC Z8.1, 8-Speed
Driver: 8-Speed, 13-34t
R. Shift Lever: SRAM X4 Trigger, 8-Speed
*R. Shift Lever Alternate: Microshift TS39-8R, 8-Speed
R. Derailleur: SRAM X4, Mid-cage, 8-Speed
*R. Derailleur Alternate: Microshift RD-M26CS, 8-Speed
Shift Cable: Fairdale

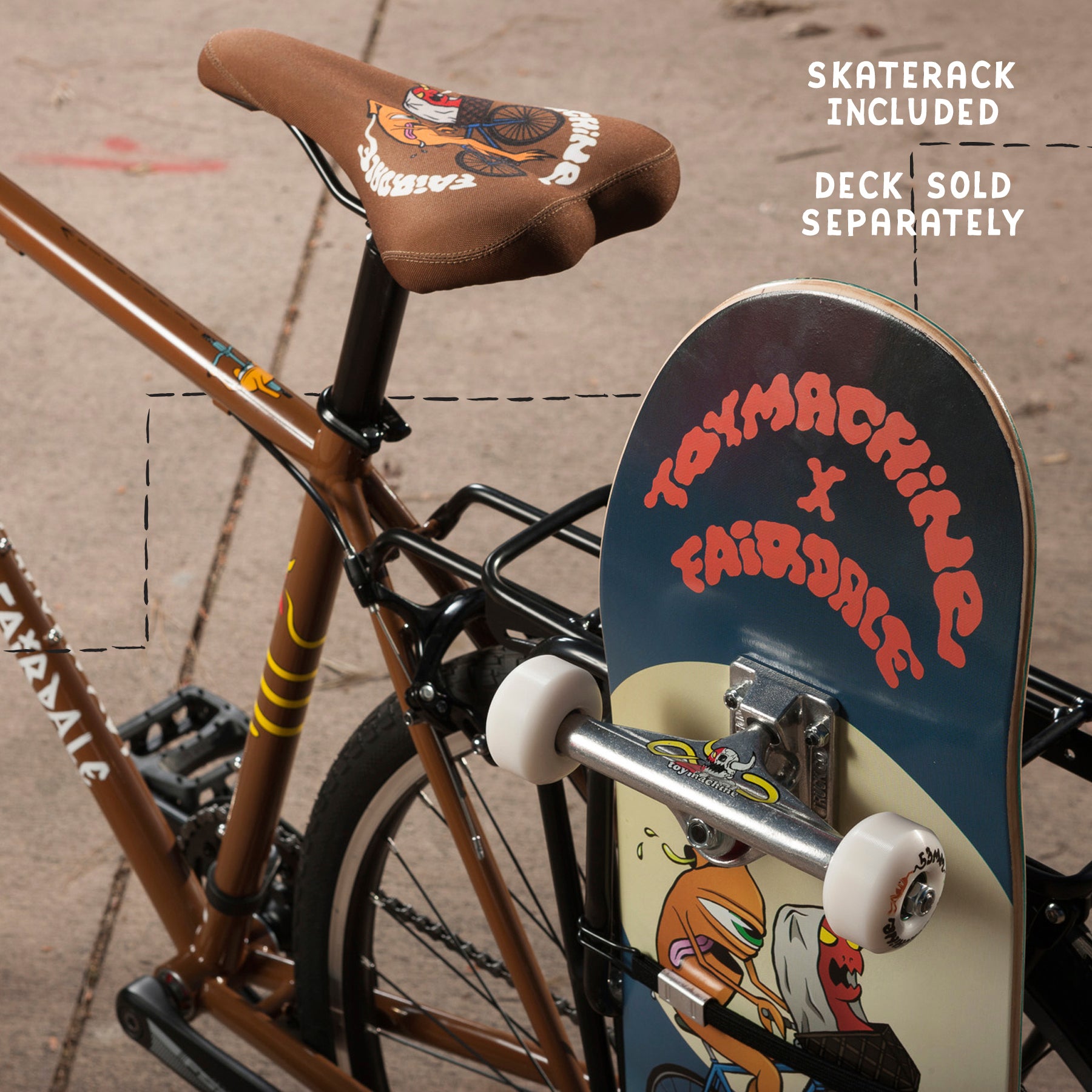

Accessories: Fairdale Skaterack and Adjust-A-Rack included. SKATEBOARD SOLD SEPARETELY

Geometry

Size	XS (49cm)	S (52cm)	M (55cm)	L (58cm)
Top Tube (Effective)	508mm	525mm	552mm	578mm
Top Tube (Actual)	495mm	507mm	531mm	559mm
Seat Tube (BB Center To TT Top)	385mm	436mm	490mm	538mm
Seat Tube (BB Center To TT Center)	317mm	370mm	448mm	496mm
Seat Tube Angle	74.5 °	74°	73°	73°
Head Tube Length	100mm	120mm	140mm	160mm
Head Tube Angle	69.6 °	70°	71°	72.5°
Chain Stay Length	440mm	440mm	440mm	440mm
Wheelbase	1021mm	1030mm	1038mm	1050mm
Standover	698mm	733mm	780mm	815mm
Stack	521mm	541mm	564mm	589mm
Reach	363mm	370mm	379mm	398mm
Fork Length	401mm	401mm	401mm	401mm
Fork Offset	50mm	50mm	50mm	50mm
BB Drop	68mm	68mm	68mm	68mm
Dropout Spacing	135mm	135mm	135mm	135mm
BB Type	English 68	English 68	English 68	English 68
Seat Post	27.2mm	27.2mm	27.2mm	27.2mm
Seat Clamp	30mm	30mm	30mm	30mm
Approx. Max Tire Width	42mm	42mm	42mm	42mm
Wheel Size	700c	700c	700c	700c
