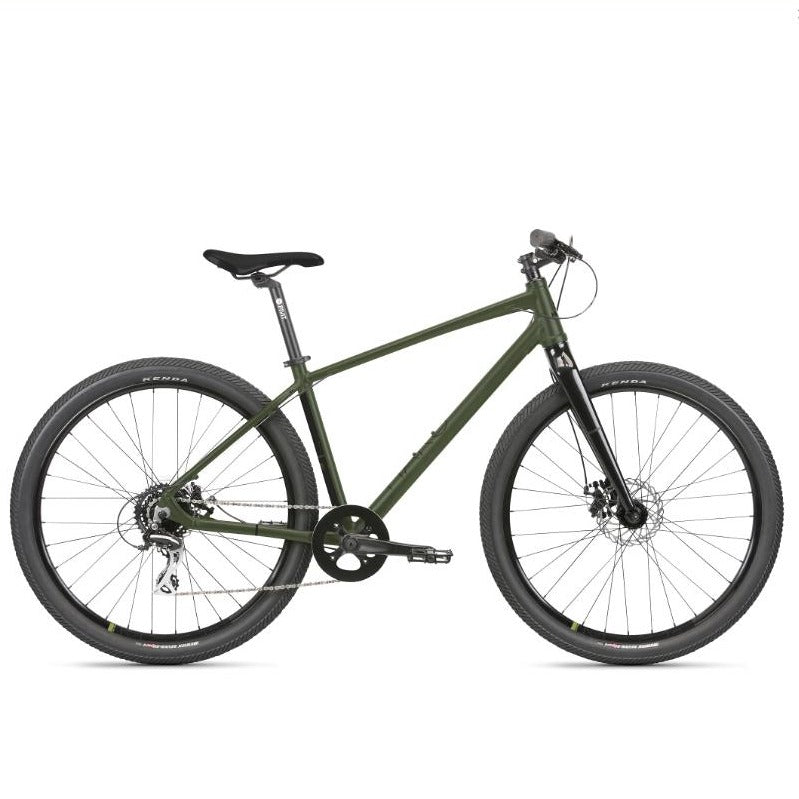

Haro Beasley 2021 - Army Green



Designer: Haro

$619.99

Do you want a bike to ride everything urban? From quick trips to the local store and nearby parks, to rides to work, and all the places in between, the Beasley 27.5" offers a sharp and sophisticated feel for amazing rides in any urban environment. Features include a 1x drive-train that makes shifting a breeze and Kenda Kwick 2.0 tires that ensure that harsh pavement is little more than an eyesore. Perhaps best of all, with its all-blacked-out aesthetic, it's as stealth as they come.
FRAMESET
FRAME HARO BEASLEY 27.5" | X6 ALUMINUM SERIES | NEW CHAINSTAY DESIGN | POST DISC MOUNT
FORK RIGID 27.5" 6061-T6 ALUMINUM ALUMINUM TAPERED STEER TUBE | IS DISC MOUNT | FOR INTEGRATED HEADSET
COLORS Matte Black, Matte Army Green
DRIVETRAIN
CRANKS Samox Aluminum | 38T chainring Double-Aluminum chainguard | 170 / 175mm
PEDALS FPD aluminum Platform | Chromoly axles | SBB Ball-Bearings
CHAIN KMC X8 HG | 8-spd | 1/2"*3/32"
BOTTOM BRACKET Sealed cartridge
FRONT DERAILLEUR N/A
REAR DERAILLEUR Shimano Acera RD-M360-L | 8-spd
DERAILLEUR SHIFTER Shimano Altus SL-M310 | Right | 8-spd
FREEWHEEL/CASSETTE Shimano CS-HG31 | 8-spd | 11-34T
WHEELS
TIRES Kenda Kwick Seven.5 | 27.5x2.0"
WHEELS/RIMS MX-21 27mm aluminum double wall rims
HUBS Pivit aluminum cassette 32h
BRAKING SYSTEM
BRAKES Jak-7 Mechanical disc brakes | 160mm Rotors
BRAKE LEVERS Tektro ML-520-RS Aluminum | 2-Finger
OTHER COMPONENTS
GRIPS/TAPE Haro MTB
HANDLEBAR Pivit aluminum 25mm riser bar 31.8mm
STEM Pivit Aluminum | 3D Forged | 31.8mm
HEADSET 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone
SADDLE Haro Flightline
SEAT POST Pivit Aluminum | 2 Bolts | micro adjust 30.9x350mm
SEAT CLAMP Pivit alloy 34.9mm | quick release
Frame reference chart
GEOMETRY & SIZING
SIZE S / 15 M / 17 L / 19 XL / 21
A. SEAT TUBE (C-T) 381mm (15") 432mm (17") 483mm (19") 533mm (21")
B. TOP TUBE (EFFECTIVE) 570mm (22.4") 600mm (23.6") 610mm (24") 625mm (24.6")
C. HEAD TUBE ANGLE 71.5° 72° 72.5° 72.5°
D. SEAT TUBE ANGLE 73° 73° 73° 73°
E. CHAINSTAY LENGTH 445mm (17.5") 445mm (17.5") 445mm (17.5") 445mm (17.5")
F. BB DROP 65mm (2.6") 65mm (2.6") 65mm (2.6") 65mm (2.6")
G. WHEELBASE 1034mm (40.7") 1060mm (41.7") 1065mm (41.9") 1080mm (42.5")
H. HEAD TUBE LENGTH 120mm (4.7") 145mm (5.7") 170mm (6.7") 195mm (7.7")
I. STANDOVER 703mm (27.7") 736mm (29") 775mm (30.5") 813mm (32")
J. STACK HEIGHT 566mm (22.3") 592mm (23.3") 618mm (24.3") 642mm (25.3")
K. REACH 396mm (15.6") 418mm (16.5") 421mm (16.6") 428mm (16.9")
L. FORK HEIGHT 424mm (16.7") 424mm (16.7") 424mm (16.7") 424mm (16.7")
M. FORK OFFSET 45mm (1.8") 45mm (1.8") 45mm (1.8") 45mm (1.8")
N. STEM LENGTH 70 or 80mm 70 or 80mm 80mm 80mm
O. BAR WIDTH 680mm 680mm 700mm 700mm
P. CRANK LENGTH 170mm 175mm 175mm 175mm
Frame size chart
