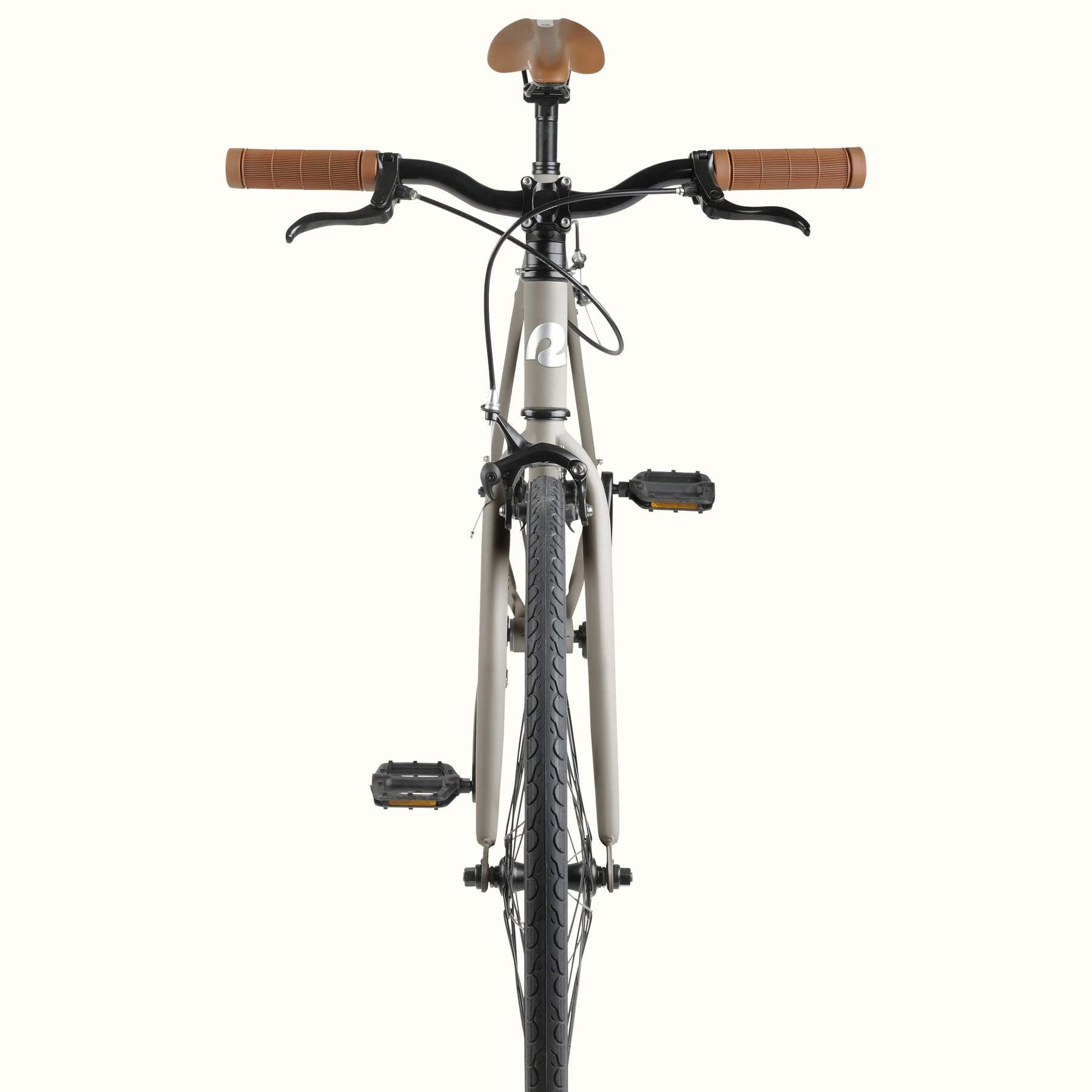

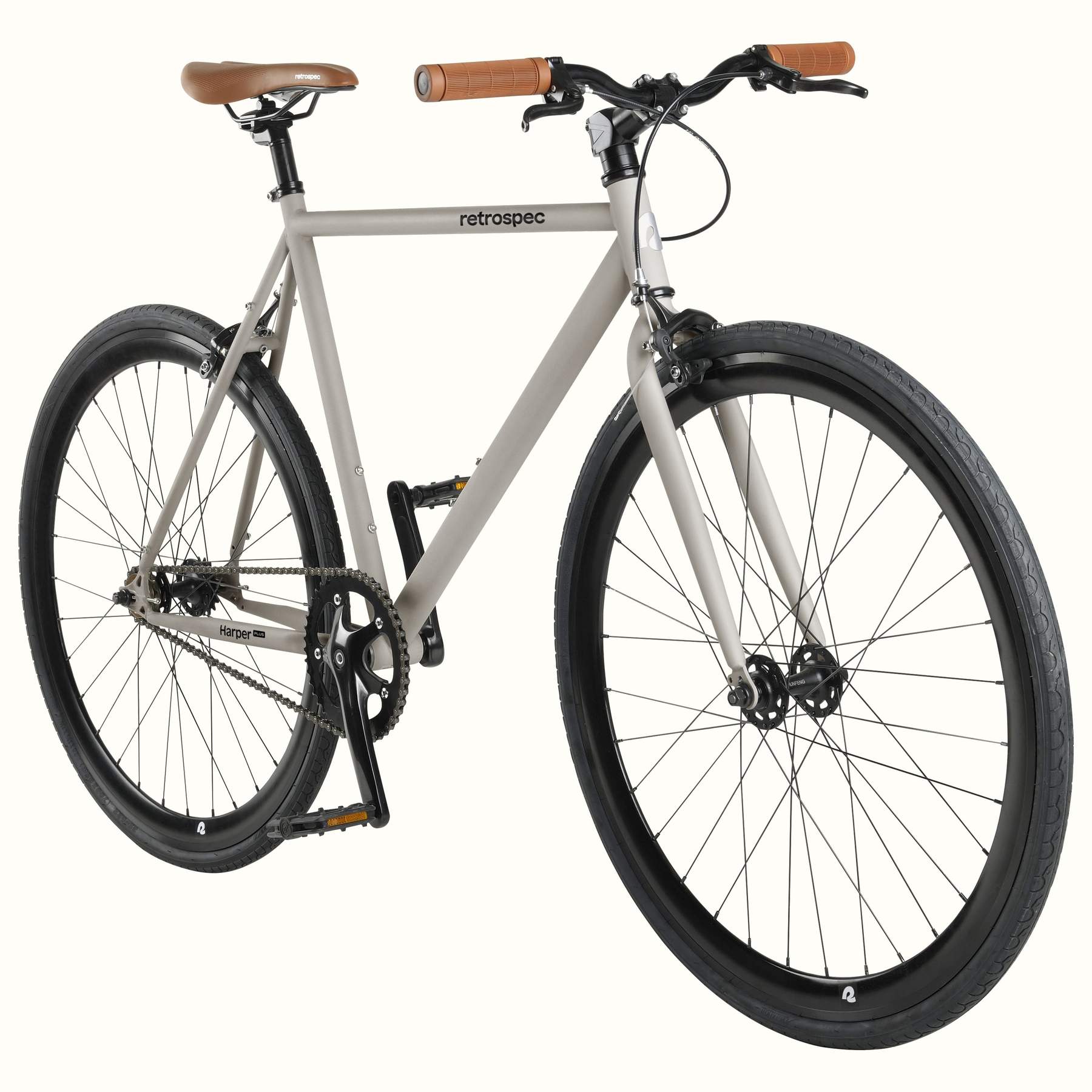

Harper Plus Single Speed/FG - Matte Tungsten

Designer: Retrospec

Sold Out

FRAMESET

Sizes 43, 49, 53, 57, 61cm
Frame Hand Built tig-welded high-tensile steel, "UrbanComfort" design, forged horizontal rear dropouts with integrated chain tensioners, bar-spin clearance with no toe overlap
Fork Unicrown, Threadless, 28.6mm, 1x fender-eyelet

WHEELSET

Rims Retrospec aluminum double-wall 32H, 40mm deep-V section, precision machined brake tracks
Hubs Retrospec large-flange aluminum alloy, sealed cartridge bearings, 32H, rear flip-flop, bolt-on
Spokes 14G Stainless steel
Tires Retrospec 700 x 32C all-season, P/V valves

Recommended Weight Limit 250 LBS

DRIVETRAIN

Crank Mantra Forged Aluminum Alloy 170mm x 46T x1/8"
Chain KMC 1/2 x 1/8"
Bearings Sealed Cartridge
Freewheel/Cog 16T x 1/8"

COMPONENTS

Headset 1 1/8" (28.6mm) steel, Threadless
Brakes Aluminum alloy dual-pivot side-pull calipers & aluminum brake levers
Handlebars Aluminum Alloy 520mm Wide x 30mm Rise, 25.4
Grips Retrospec UrbanComfort Kraton 125mm length
Stem Aluminum alloy 4-bolt Threadless, 80mm extension x 7⁰ rise x 36mm rise, 25.4 handlebar clamp, 28.6 steerer
Saddle Retrospec Urban2
Seatpost Aluminum Alloy Seat Post 25.4 x 300mm with Micro Adjust head
Seatpost Clamp Aluminum alloy CNC precision 28.6mm
Pedals Low-Profile Platform, Reinforced Nylon resin, 9/16"

A.Rider Height

B.Inseam

C.Top Tube

Size	Height Range	Standover Height
43CM - XS	4'9"-5'1"	29"
49CM - S	5'2"-5'5"	31"
53CM - M	5'6"-5'8"	32.5"
57CM - L	5'9"-5'11"	33.5"
60CM - XL	6'+	35"

What's My Size?

Your inseam can help you find the perfect sized bike (measuring it properly is similar to pant inseams but measured a little differently). Here's how they work:

Stand upright with your feet 6-8" apart.
Using a tape measure or tailor tape, measure from the bottom of your foot to the top of the inside of your leg.
Compare your inseam measurement to the standover height of the bike. You should have about an inch of space between your body and the top tube.
