DOUBLE PEAK 29 TRAIL - Matte Black
Designer: Haro
Sold Out
Now Available!
The 2021 Double Peak 29" Trail model features a brand new frame design, made from X6 series aluminum, with a low stand-over height for a low center of gravity and internal cable routing. The DP Trail model features a Shimano Alivio 2x9 drive train, versatile and capable of handling a wide variety of terrain. It glides along on 29" double wall rims, stainless spokes and Kenda Honey Badger XC 2.2" tires. The front end features a Suntour XCT-30 100mm fork with hydraulic lockout. The Trail appreciates speed, but it can stop on a dime thanks to its Shimano MT-200 Hydraulic disc brakes.
FEATURES

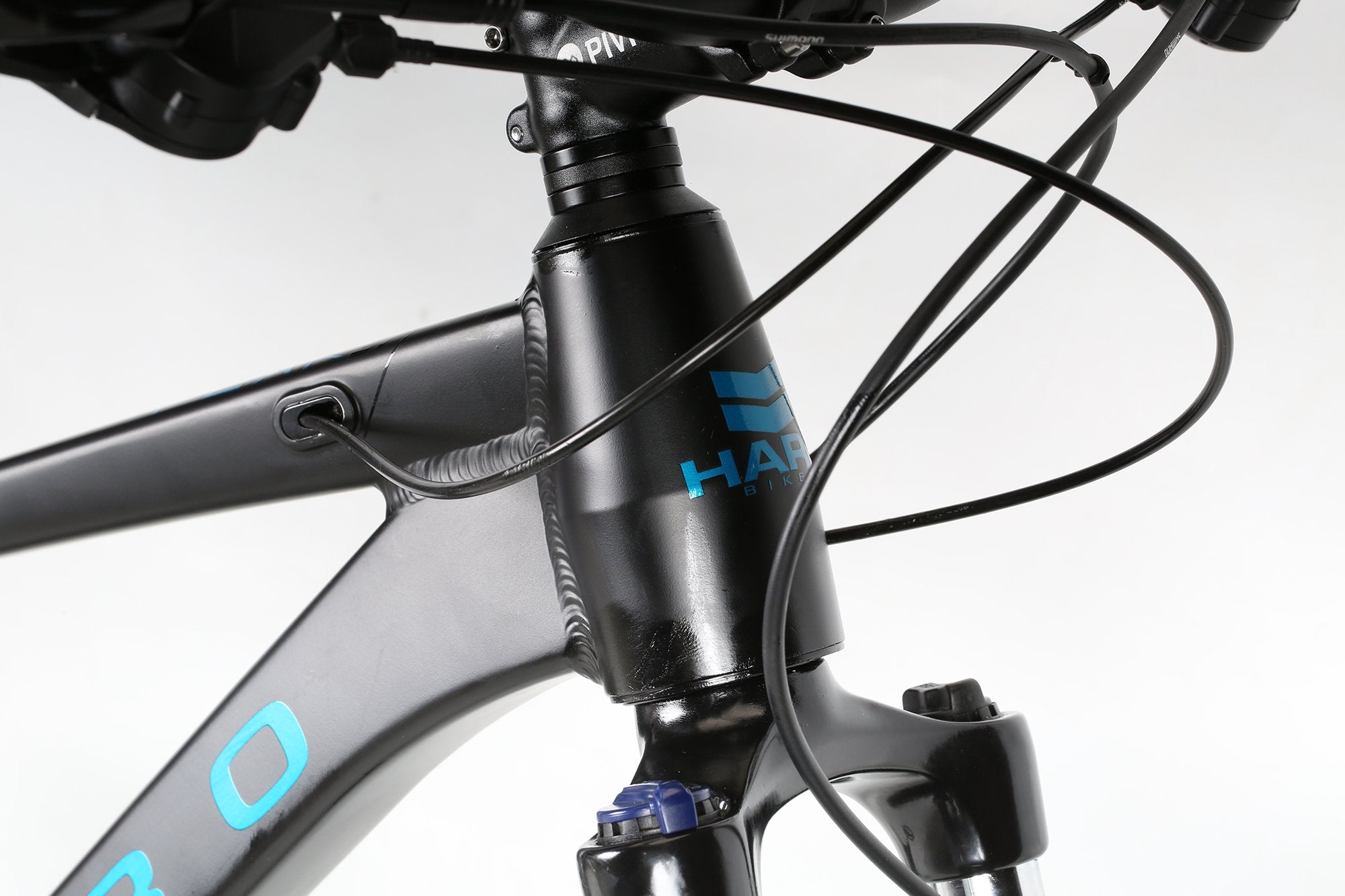

- New Double Peak X6 Series frame w/ tapered head tube
- Suntour XCT-30 HLO 100mm travel fork

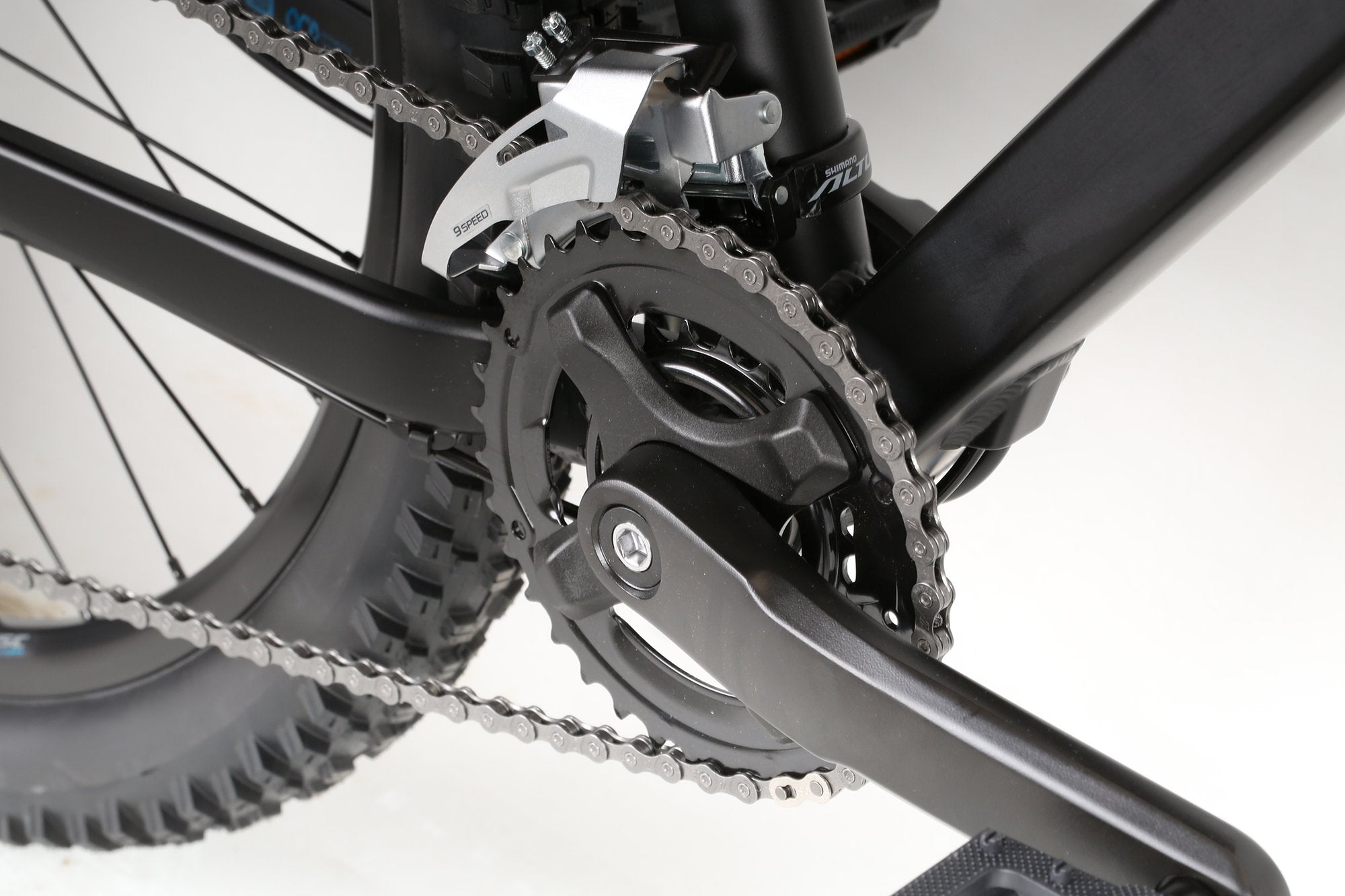

- Aluminum crankset, 36/22T, 2x9
- Altus M2020-M front derailleur

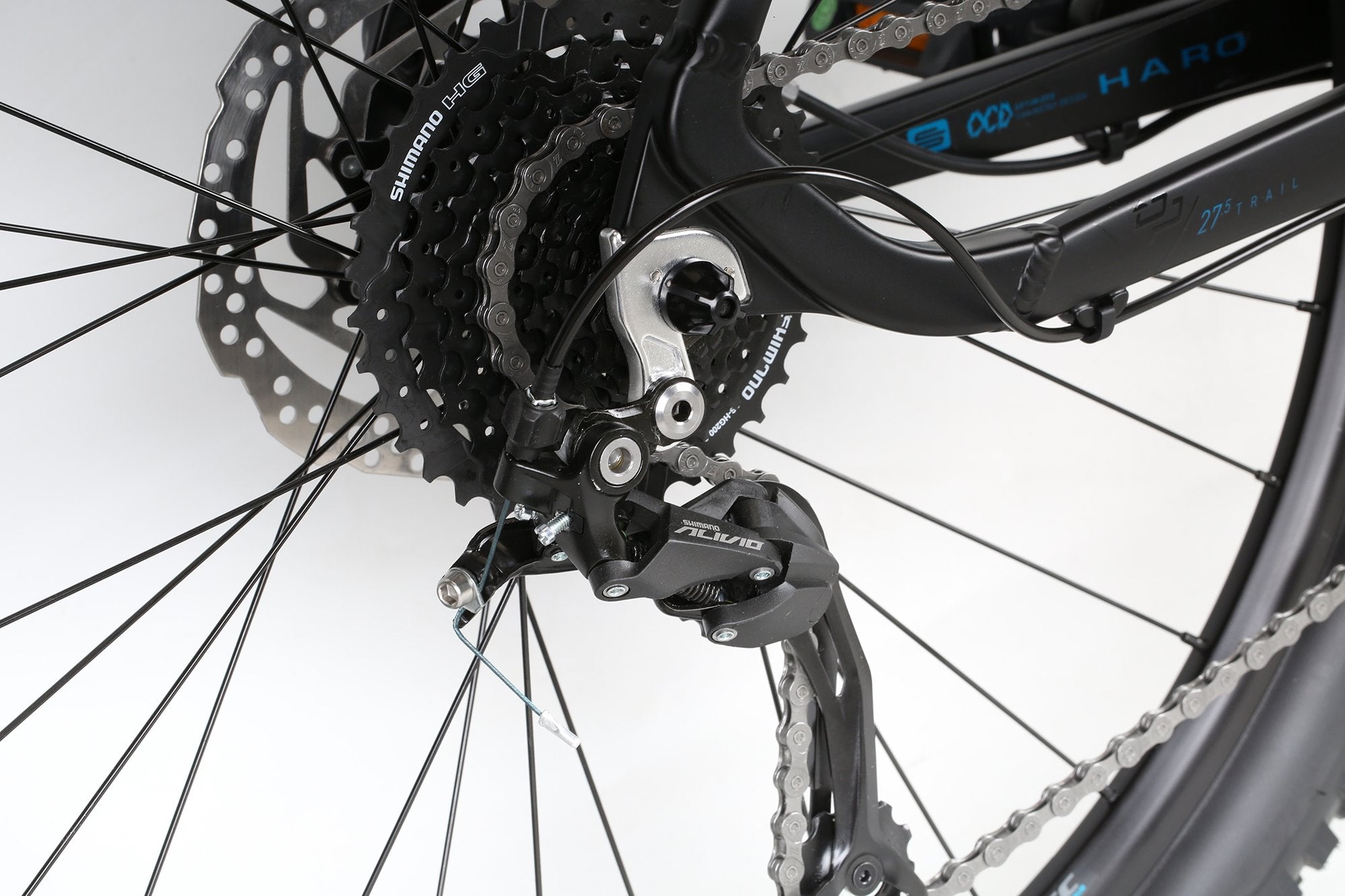

- New Alivio M3100 SGS 9-spd rear derailleur
- Shimano Altus SL-M2010-2L shifters
- Shimano HG-200 9-spd 11-36T cassette
- MX-21 29"x27mm Aluminum DW rims
- Shimano MT-200 hydraulic disc brakeset, Center Lock
| FRAMESET | |
|---|---|
| FRAME | NEW 2021 HARO DOUBLE PEAK 29" X6 ALUMINUM SERIES | TAPERED HEAD TUBE | INTERNAL HOUSING ROUTING | CHAINSTAY DISC BRAKE MOUNT | 73MM THREADED BSA |
| FORK | SR SUNTOUR XCT-30 | 29X100MM TRAVEL | HYDRAULIC LOCKOUT |
| COLORS | Matte Black |
| DRIVETRAIN | |
| CRANKS | Shimano MT-101 | 36/22T | 2x9-Spd |
| PEDALS | FPD Nylon body | Chromoly axles | Platform |
| CHAIN | KMC Z9 9-spd |
| BOTTOM BRACKET | Shimano Sealed cartridge |
| FRONT DERAILLEUR | Shimano Altus | FD-M2020 | 2x9-spd | Top Swing |
| REAR DERAILLEUR | New Alivio M3100 SGS 9-spd | Shadow design |
| DERAILLEUR SHIFTER | New Shimano SL-M2010-2L | 2x9-spd |
| FREEWHEEL/CASSETTE | Shimano HG-200 9-spd 11-36T |
| WHEELS | |
| TIRES | Kenda Honey Badger XC 29.0*2.2 |
| WHEELS/RIMS | MX-21 29"x27mm Aluminum double wall |
| HUBS | Shimano TX-505 alloy | Center Lock Disc | cassette 32h |
| BRAKING SYSTEM | |
| BRAKES | Shimano BR-MT200 hydraulic | 160mm Center Lock Rotors |
| BRAKE LEVERS | Shimano BL-MT200 |
| OTHER COMPONENTS | |
| GRIPS/TAPE | WTB Trail II |

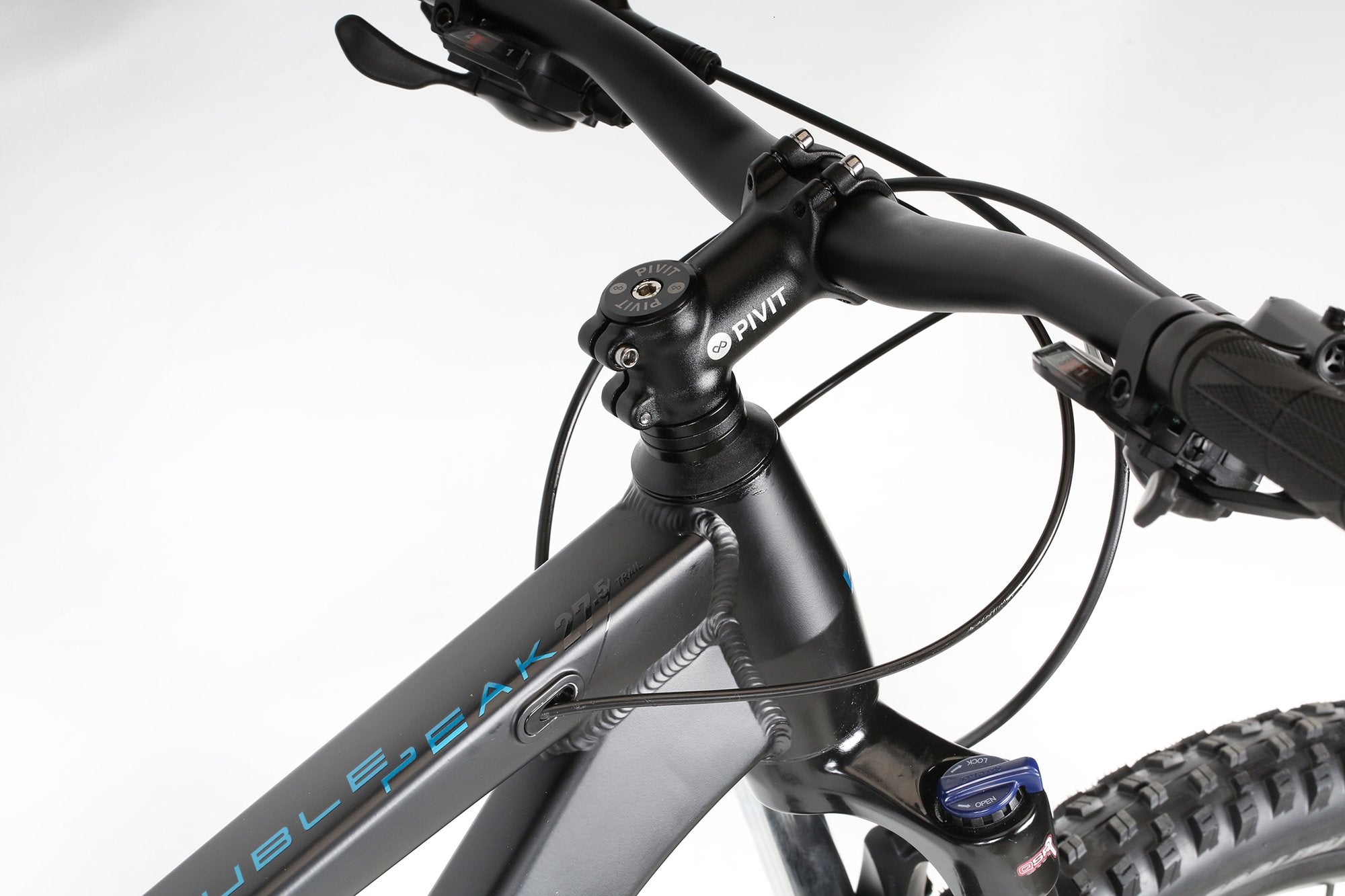

| HANDLEBAR | Pivit aluminum | 15mm riser bar | 31.8mm |
| STEM | Pivit forged stem |
| HEADSET | 1-1/8"-1.5" Threadless for 50/62mm OD headtube | 10.0mm Aluminum top cover |
| SADDLE | New Haro Double Peak |
| SEAT POST | Pivit aluminum micro adjust 31.6mm |
| SEAT CLAMP | Pivit aluminum 34.9mm quick release |
| EXTRAS | Internal housing routing |
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| A. SEAT TUBE (C-T) | 406mm (16") | 432mm (17") | 483mm (19") | 533mm (21") |
| B. TOP TUBE (EFFECTIVE) | 593mm (23.3") | 618mm (24.3") | 639mm (25.2") | 657mm (25.9") |
| C. HEAD TUBE ANGLE | 67° | 67° | 67° | 67° |
| D. SEAT TUBE ANGLE | 72.5° | 72.5° | 72.5° | 72.5° |
| E. CHAINSTAY LENGTH | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") | 450mm (17.7") |
| F. BB DROP | 63mm (2.5") | 63mm (2.5") | 63mm (2.5") | 63mm (2.5") |
| G. WHEELBASE | 1165mm (45.9") | 1190mm (46.9") | 1212mm (47.7") | 1231mm (48.5") |
| H. HEAD TUBE LENGTH | 100mm (3.9") | 100mm (3.9") | 105mm (4.1") | 115mm (4.5") |
| I. STANDOVER | 738mm (29.1") | 741mm (29.2") | 751mm (29.6") | 774mm (30.5") |
| J. STACK HEIGHT | 626mm (24.6") | 626mm (24.6") | 630mm (24.8") | 640mm (25.2") |
| K. REACH | 425mm (16.7") | 450mm (17.7") | 470mm (18.5") | 485mm (19.1") |
| L. FORK HEIGHT | mm (") | mm (") | mm (") | mm (") |
| M. FORK OFFSET | 51mm (2") | 51mm (2") | 51mm (2") | 51mm (2") |
| N. STEM LENGTH | 60mm | 60mm | 60mm | 60mm |
| O. BAR WIDTH | 700mm | 700mm | 700mm | 700mm |
| P. CRANK LENGTH | 170mm | 175mm | 175mm | 175mm |
